CBD20R-II,CBD25R-II,CBD30R-II

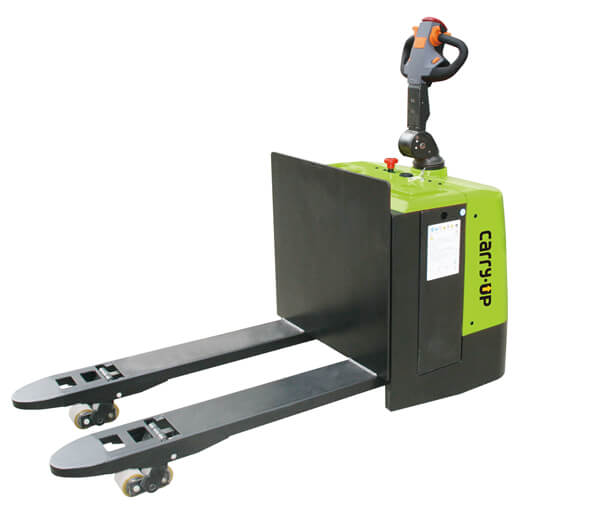

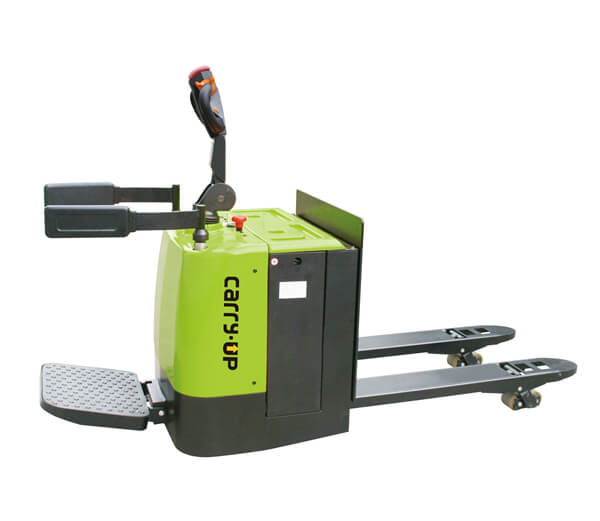

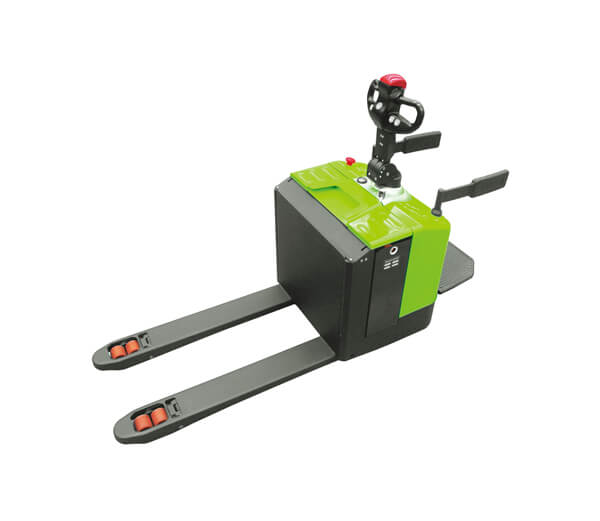

| CARRY•UP CBD20R-II/CBD25R-II/CBD30R-II(EPS) ELECTRIC PALLET TRUCK | |||||
| Specification | 1 | Model |
CBD20R-II/CBD25R-II/ CBD28R-II/CBD30R-II(EPS) |
||
| 2 | Operating type | Stand On | |||
| 3 | Power type | electric | |||
| 4 | Rated Capacity | kg | 2000/2500/2800/3000 | ||
| 5 | Load Centre | mm | 600 | ||
| 6 | Wheels type | mm | PU | ||
| 7 | Wheel base | mm | 1493 | ||
| 8 | Wheel quantity | mm | 1D/4F/1B | ||
| 9 | driving wheel size | mm | ￠248×75 | ||
| 10 | Balance wheel size | mm | ￠115×55 | ||
| 11 | Bearing wheel size | mm | ￠80×80（Double wheel） | ||

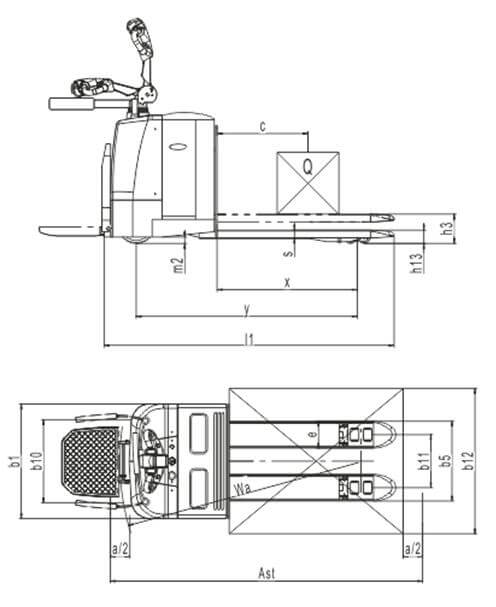

| Dimensions | 12 | Min.fork lowered height | mm | 85 | |
| 13 | Max.fork lifting height | mm | 205 | ||
| 14 | Max.lifting height | mm | 120 | ||
| 15 | Overall fork width | mm | 550/600/650/685 | ||
| 16 | Fork length | mm | 1150/1200 | ||
| 17 | Fork width | mm | 170 | ||
| 18 | Fork thickness | mm | 75 | ||
| 19 | Overall length | mm | 1916/2333 | ||
| 20 | Overall width | mm | 790 | ||
| 21 | Overall height(With handle) | mm | 1455 | ||
| 22 | Overall height(Without handle) | mm | 845 | ||
| 23 | Min.Turning radius | mm | 1746/2158 | ||
| 24 | Min.Aisle width for pallets 800×1200 | mm | 2046/2435 | ||
| 25 | Min.Aisle width for pallets 1000×120 | mm | 2077/2458 | ||
| Performance | 26 | Speed | Travel (Laden/unladen) | km/h | 5/5 |
| 27 | Lifting (Laden/unladen) | mm/s | 20/25 | ||
| 28 | Lowering (Laden/unladen) | mm/s | 40/30 | ||
| 29 | Max.Gradeability | (Laden/unladen) | % | 5/7 | |
| 30 | Service Weight（include battery ） | kg | 830 | ||
| Driven | 31 | Motor | Driven Motor | kw | AC 1.5 |
| 32 | Lift Motor | kw | DC 1.2 | ||
| 33 | Steering motor | kw | DC 0.15 | ||
| 34 | Battery | Standard | V/Ah | 24/210(270) | |
| 35 | Controller | Manufacturer | CURTIS 1230 | ||
| 36 | Brake | Electromagnetic / Regenerative | |||
