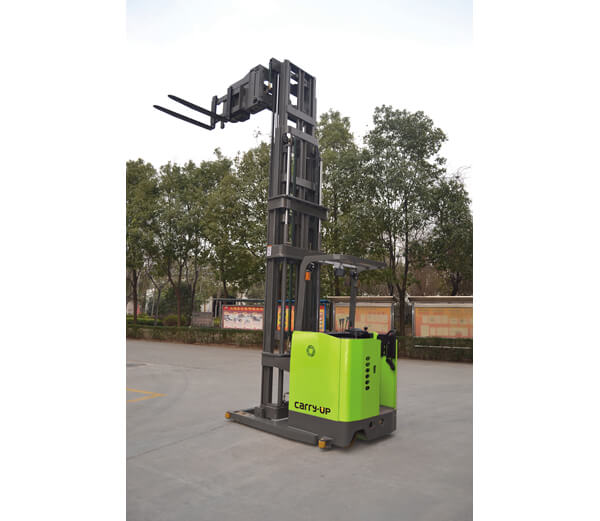

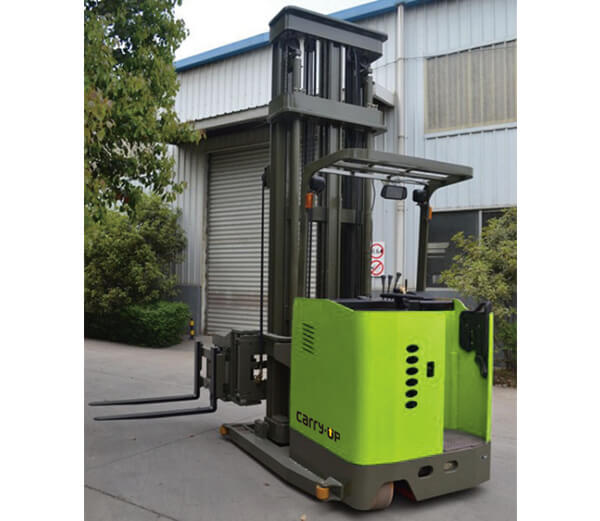

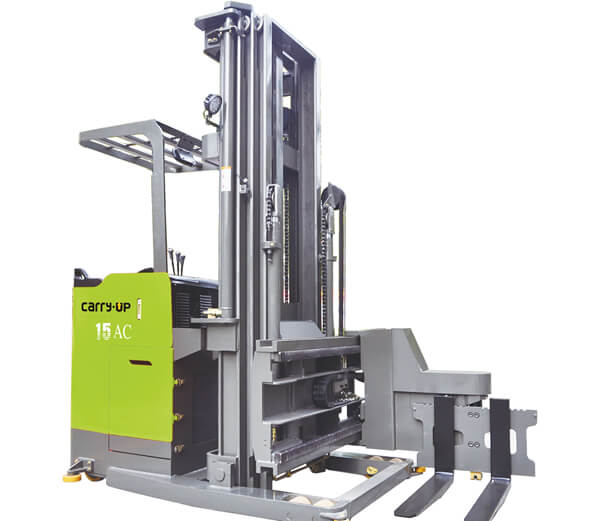

TW10&TW15

Carryup 3-Way Electric Reach Truck
TW10&TW15
1. Soft backrest;
2. Loaded Capacity: 1Tons，1.5Tons
3. The min. width of aisle is 1510mm;
4. Colored monitor for triplex mast;
5. More efficient use of available space
6. More Product Storage - Up to 60% increase;
7. Optional lift height: 2500-7500mm ,and no loading weight missing under 5500mm
8. A narrow classis design, small battery compartment and tiller arm steering with 180° range give this compact stacker excellent maneuverability even in limited space.
Benefits & Features Specifications
CARRY•UP 3-Way electric reach truck TW10/TW15
General 1 Model 　 TW1030 TW1045 TW1530 TW1545
2 Power Type 　 Electric
3  Operation Type 　  Stand on
4 Rated Capacity kg 1000 1000 1500 1500
5 Load Centre mm 500 600
6 Wheelbase  mm 1605 1700
Characteristic
&Dimension		 7  Lift Height mm 3000 4500 3000 4500
9 Front Overhang (Wheel center to fork face) mm 655 655 655 655
10 Tyre  Front /rear type mm PU
11 Front wheel size mm φ140*100 φ140*127
12 Driving wheel size mm φ380*165
13 Balance wheel size mm φ204*76
14 front/rear number (X=drive) mm 4/1X+2
17 Overall Dimension Mast Lowered Height mm 2570 2750 2565 2823
18 Free lift height mm 0 1780 0 1745
20 Mast Extended Height
(with backrest)		 mm 4060 5450 4040 5555
20 Overhead Guard Height mm 2325 2325 2325 2325
20 Height of pedal mm 370 370 370 370
20 Overall Length mm 2892 2892 3000 3000
20 Overall width mm 1450 1450 1550 1550
20 Fork Dimensions l/e/s(mm) 1070/100/35 1070/125/50
20 Width overall forks mm 230~760 400~780
21 Ground Clearance mm 40
22 Turning Radius  mm 1880 1980
23 Aisle Width for pallet 1000*1200 mm 1480 1600
Performance 24 Speed Travel (laden/unladen) km/h 8/9 7.5/8
25 Lift (laden/unladen) mm/s 180/315 180/315
30 Steering type / hydraulic EPS
30 Service weight(include battery) kg 4760 5270 4650 5640
Power&
Transmission		 31 Motor Drive motor kw 5.5AC
32 Lift motor kw 7.5DC 8.6AC
33 Battery Voltage/Capacity  V/Ah 48/400 48/400 48/450 48/450
34 Controller Manufacturer 　 CURTIS CURTIS CURTIS CURTIS
36 Battery change type Mpa Side pull Side pull Side pull Side pull

3-Way Electric Reach Truck--Manufacturer CARRY•UP

MORE LIFT HEIGHT CHOICE:
TW1000
Duplex mast
Model 　 TW1025 TW1030 TW1035 TW1040 TW1045 　 　
Lift Height h3(mm) 2500 3000 3500 4000 4500 　 　
Height-Mast extended w/ backrest  h4(mm) 3560 4060 4560 5060 5560 　 　

Height-Mast  Lowered		 h1(mm) 2320 2570 2820 3070 3320 　 　
 Triplex full free mast
 Model 　 TW1045 TW1050 TW1055 TW1060 TW1065 TW1070 TW1075

Lift Height		 h3(mm) 4500 5000 5500 6000 6500 7000 7500

Height-Mast extended w/ backrest 		 h4(mm) 5450 5951 6452 6950 7451 7952 8450

Height-Mast  Lowered		 h1(mm) 2750 2917 3084 3250 3417 3584 3750

Free lift height		 h2(mm) 1780 1948 2114 2280 2448 2614 2780
　               　
TW1500
 Duplex mast
Model 　 TW1525 TW1530 TW1535 TW1540 TW1545 　 　

Lift Height		 h3(mm) 2500 3000 3500 4000 4500 　 　
Height-Mast extended w/ backrest  h4(mm) 3540 4040 4540 5040 5540 　 　

Height-Mast  Lowered		 h1(mm) 2315 2565 2815 3065 3315 　 　
Triplex full free mast
Model 　 TW1545 TW1550 TW1555 TW1560 TW1565 TW1570 TW1575

Lift Height		 h3(mm) 4500 5000 5500 6000 6500 7000 7500

Height-Mast extended w/ backrest 		 h4(mm) 5555 6050 6550 7040 7550 8050 8550

Height-Mast  Lowered		 h1(mm) 2823 2993 3158 3323 3493 3658 3823

Free lift height		 h2(mm) 1745 1905 2075 2245 2405 2575 2745

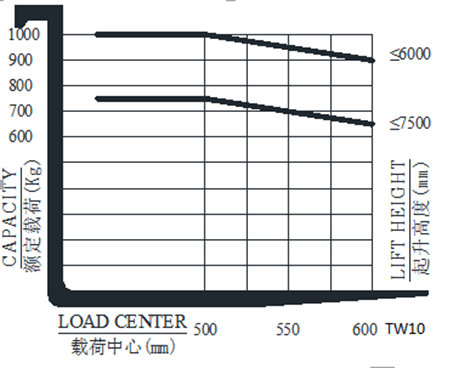

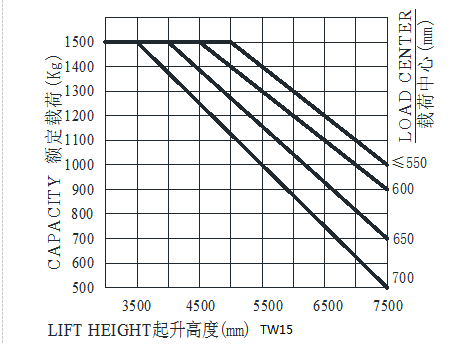

Load Capacity Chart


TW10&TW15

Carryup 3-Way Electric Reach Truck
TW10&TW15
1. Soft backrest;
2. Loaded Capacity: 1Tons，1.5Tons
3. The min. width of aisle is 1510mm;
4. Colored monitor for triplex mast;
5. More efficient use of available space
6. More Product Storage - Up to 60% increase;
7. Optional lift height: 2500-7500mm ,and no loading weight missing under 5500mm
8. A narrow classis design, small battery compartment and tiller arm steering with 180° range give this compact stacker excellent maneuverability even in limited space.
:

:

:
