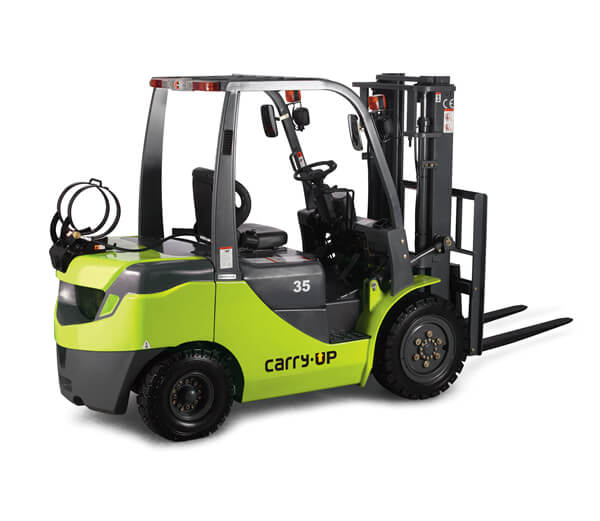

FGY30&FGY35

Gasoline&LPG Forklift
FGY30 FGY35
Capacity: 3tons,3.5tons

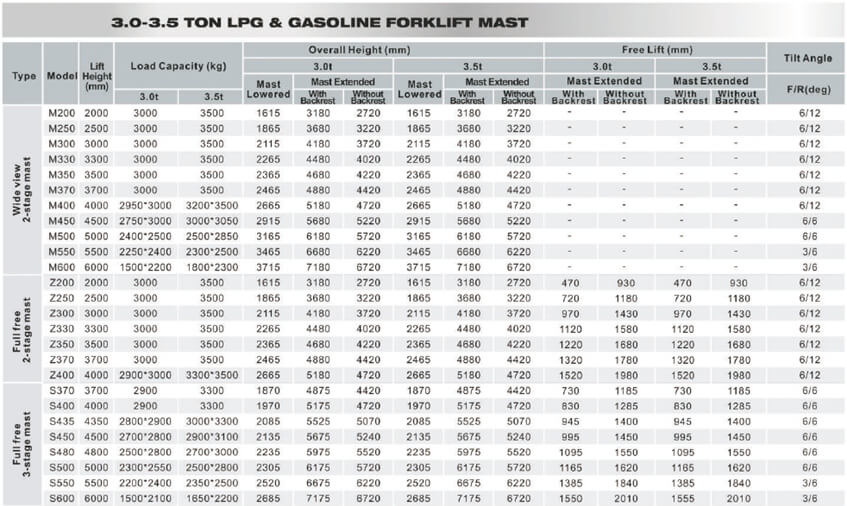

Max.lift height :3000~6000mm
Benefits & Features Specifications
CARRY•UP FGY30 FGY35 LPG FORKLIFT SPECIFICATION
General 1 Model 　 FGY30   FGY35
2 Power Type  　 Gasoline/LPG Gasoline/LPG
3 Rated Capacity kg 3000 3500
4 Load Centre mm 500 500
Characteristic
&
Dimension 		 5 Lift Height mm 3000 3000
6 Fork Size L×W×T    mm 1070×125×45 1070×125×50
7 Mast Tilt Angle F/R Deg 6°/12° 6°/12°
8 Front Overhang (Wheel center to fork face) mm 475 480
9 Ground Clearance（Bottom of mast） mm 135 135
10 Overall Dimension Length to face of fork
(Without fork)		 mm 2730 2770
11 Overall Width mm 1225 1225
12 Mast Lowered Height mm 2115 2115
13 Mast Extended Height
(With backrest)		 mm 4160 4160
14 Overhead Guard Height mm 2090 2090
15 Turning Radius (outside) mm 2440 2480
16 Min. insecting asisle 　 2490 2530
Performance 16 Speed Travel (No load) km/h 19 19
17 Lifting (Full load) mm/s 440 440
18 Max.Gradeability (No load/Full load) % 20 20
Chassis 19 Tire Front mm 28×9-15-12PR 28×9-15-12PR
20 Rear mm 6.50-10-10PR 6.50-10-10PR
21 Wheelbase mm 1700 1700
22 Service weight kg 4300 4390
Power
&
Transmission		 23 Battery Voltage/Capacity  V/Ah 12/80 12/80

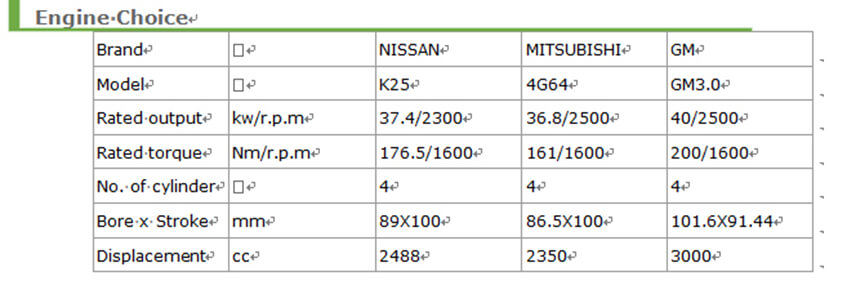

24 Engine Model 　 K25 K25
25 Manufacture 　 NISSAN NISSAN
26 Rated output/r.p.m. kw 37.4/2300  37.4/2300
27 Rated torque/r.p.m. N·m 176.5/1600 176.5/1600
28 No.of Cylinder 　 4 4
29 Bore×Stroke mm 89×100 89×100
30 Displacement cc 2488 2488
31  Fuel Tank Capacity L 60 60
32 Transmission Type 　 hydraulic hydraulic
33 FWD/RVS 　 1/1 1/1
