FB10&FB15&FB18

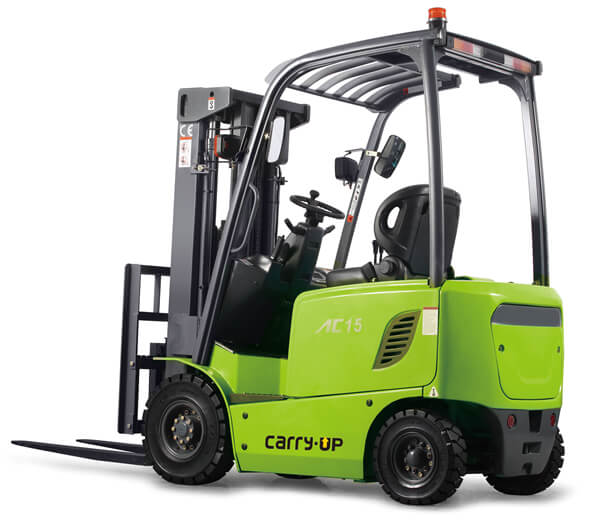

CARRY•UP FB15~FB18 FOUR WHEELS FORKLIFT SPECIFICATION | |||||||
Specification | 1 | Model | FB10 | FB15 | FB18 | ||
2 | Power type | electric | electric | electric | |||
3 | Rated Capacity | kg | 1000 | 1500 | 1800 | ||
4 | Load Centre | mm | 500 | 500 | 500 | ||
5 | Lifting Height | mm | 3000 | 3000 | 3000 | ||
6 | Fork Size | L×W×T | mm | 920×120×35 | 920×120×35 | 920×120×35 | |
7 | Tilting Angle | F/R(α°/β°) | Deg | 6/12 | 6/12 | 6/12 | |

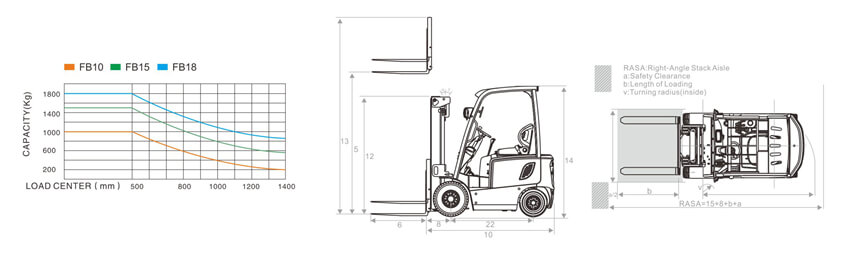

Dimensions | 8 |
Overall Dimension |
Length (to fork face) | mm | 2150 | 2150 | 2150 |
9 | Overall Width | mm | 1090 | 1090 | 1090 | ||
10 | Mast Lowered Height | mm | 1995 | 1995 | 1995 | ||
11 |
Mast Extended Height (with backrest) |
mm | 3945 | 3945 | 3945 | ||
12 | Overhead Guard Height | mm | 2170 | 2170 | 2170 | ||
13 | Turning Radius | outside | mm | 1950 | 1950 | 1950 | |
14 | Turning Radius | Min. insecting aisle | mm | 2050 | 2050 | 2050 | |
15 | Front Overhang | mm | 420 | 420 | 420 | ||
16 | Tread | (Front/Rear) | mm | 890/920 | 890/920 | 890/920 | |
17 | Ground Clearance | Min. | mm | 115 | 115 | 115 | |
18 | Wheelbase | mm | 1380 | 1380 | 1380 | ||
19 | Fork Spread | Min./Max. | mm | 240/970 | 240/970 | 240/970 | |
Performance | 20 | Speed | Travel (Laden) | km/h | 15 | 15 | 15 |
21 | Lifting (Laden) | mm/s | 310 | 280 | 250 | ||
22 | Max.Gradeability | Laden | % | 15 | 15 | 15 | |
23 | Service Weight(include battery ) | kg | 2920 | 3070 | 3220 | ||
24 | Tire | Front | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR | ||
25 | Rear | 5.00-8-10PR | 5.00-8-10PR | 5.00-8-10PR | |||
Driven | 26 | Motor | Driven Motor | kw | 8 | 8 | 8 |
27 | Lift Motor | kw | 8.6 | 8.6 | 8.6 | ||
28 | Battery | Standard | V/Ah | 48/400 | 48/440 | 48/495 | |
29 | Controller | Manufacturer | CURTIS AC | CURTIS AC | CURTIS AC | ||
30 | Operating Pressure for Attachment | Mpa | 14.5 | 14.5 | 14.5 |
