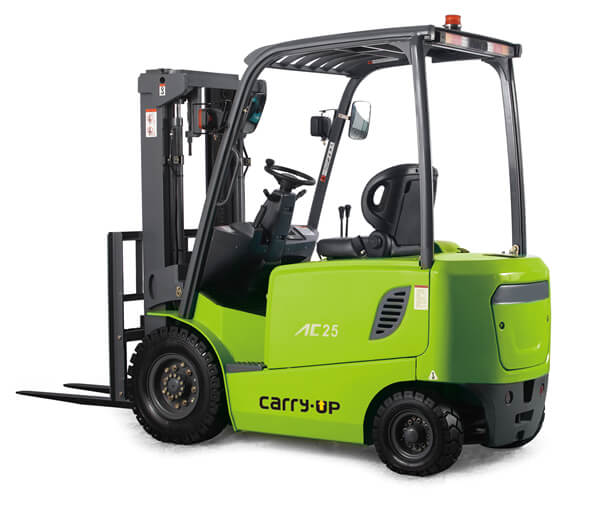

FB20&FB25
CARRY•UP FB20~FB25 4-WHEEL FORKLIFT SPECIFICATION | ||||||
Specification | 1 | Model | FB20 | FB25 | ||
2 | Power type | electric | electric | |||
3 | Rated Capacity | kg | 2000 | 2500 | ||
4 | Load Centre | mm | 500 | 500 | ||
5 | Lifting Height | mm | 3000 | 3000 | ||
6 | Fork Size | L×W×T | mm | 1070×120×40 | 1070×120×40 | |
7 | Tilting Angle | F/R(α°/β°) | Deg | 6/12 | 6/12 | |

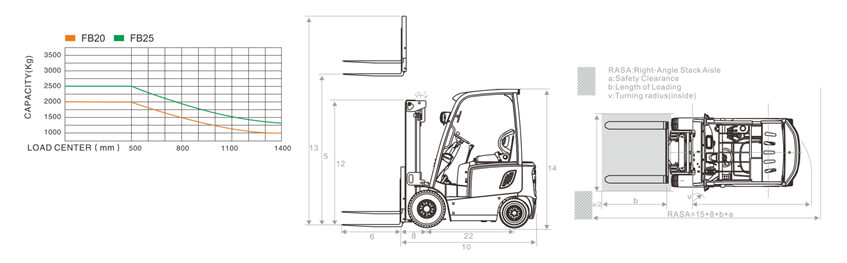

Dimensions | 8 | Overall Dimension | Length (to fork face) | mm | 2360 | 2360 |
9 | Overall Width | mm | 1160 | 1160 | ||
10 | Mast Lowered Height | mm | 2070 | 2070 | ||
11 |
Mast Extended Height (with backrest) |
mm | 4020 | 4020 | ||
12 | Overhead Guard Height | mm | 2240 | 2240 | ||
13 | Turning Radius | outside | mm | 2075 | 2075 | |
14 | Turning Radius | Min. insecting aisle | mm | 2250 | 2250 | |
15 | Front Overhang | mm | 465 | 465 | ||
16 | Tread | Front/Rear | mm | 960/950 | 960/950 | |
17 | Ground Clearance | Min. | mm | 110 | 110 | |
18 | Wheelbase | mm | 1510 | 1510 | ||
19 | Fork Spread | Min./Max. | mm | 240/1020 | 240/1020 | |
Performance | 20 | Speed | Travel (Laden) | km/h | 15 | 15 |
21 | Lifting (Laden) | mm/s | 300 | 270 | ||
22 | Max.Gradeability | Laden | % | 15 | 15 | |
23 | Service Weight(include battery ) | kg | 4170 | 4410 | ||
24 | Tire | Front | 7.00-12-12PR | 7.00-12-12PR | ||
25 | Rear | 18×7-8-14PR | 18×7-8-14PR | |||
Driven | 26 | Motor | Driven Motor | kw | 11 | 11 |
27 | Lift Motor | kw | 8.6 | 8.6 | ||
28 | Battery | Standard | V/Ah | 48/560 | 48/630 | |
29 | Controller | Manufacturer | CURTIS AC | CURTIS AC | ||
30 | Operating Pressure for Attachment | Mpa | 17.5 | 17.5 |
