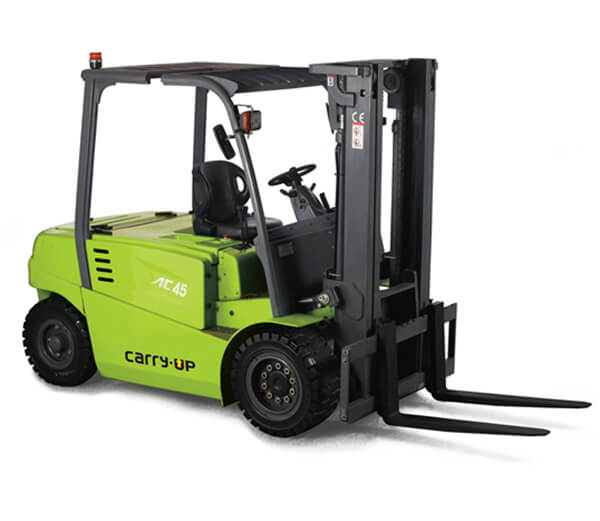

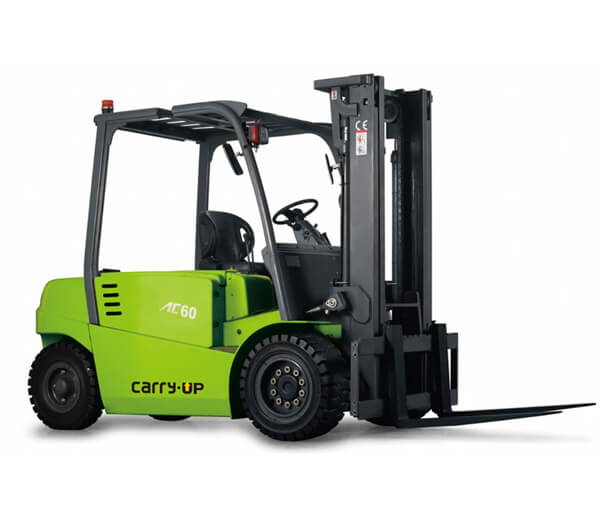

FB45&FB50&FB60
CARRY•UP FB45~FB60 FOUR WHEELS FORKLIFT SPECIFICATION | |||||||
Specification | 1 | Model | FB45 | FB50 | FB60 | ||
2 | Power type | electric | electric | electric | |||
3 | Rated Capacity | kg | 4500 | 5000 | 6000 | ||
4 | Load Centre | mm | 500 | 500 | 500 | ||
5 | Lifting Height | mm | 3000 | 3000 | 3000 | ||
6 | Fork Size | L×W×T | mm | 1070×150×50 | 1070×150×50 | 1070×150×50 | |
7 | Tilting Angle | F/R(α°/β°) | Deg | 6/9 | 6/9 | 6/9 | |
Dimensions | 8 | Overall Dimension |
Length to fork face (Without fork) |
mm | 3030 | 3030 | 3030 |
9 | Overall Width | mm | 1600 | 1600 | 1600 | ||
10 | Mast Lowered Height | mm | 2330 | 2330 | 2330 | ||
11 |
Mast Extended Height (with backrest) |
mm | 4255 | 4255 | 4255 | ||
12 | Overhead Guard Height | mm | 2255 | 2255 | 2255 | ||
13 | Turning Radius | outside | mm | 2755 | 2755 | 2755 | |
14 | Turning Radius | Min. insecting aisle | mm | 2955 | 2955 | 2955 | |
15 | Front Overhang | mm | 555 | 555 | 555 | ||
16 | Tread | (Front/Rear) | mm | 1280/1190 | 1280/1190 | 1280/1190 | |
17 | Ground Clearance | (Bottom of mast) | mm | 160 | 160 | 160 | |
18 | Wheelbase | mm | 2000 | 2000 | 2000 | ||
19 | Fork Spread | Min./Max. | mm | 300/1380 | 300/1380 | 300/1380 | |
Performance | 20 | Speed | Travel (Laden) | km/h | 14 | 14 | 14 |
21 | Lifting (Laden) | mm/s | 250 | 220 | 220 | ||
22 | Max.Gradeability | Laden | % | 15 | 15 | 15 | |
23 | Service Weight(include battery ) | kg | 7500 | 7800 | 8200 | ||
24 | Tire | Front | 28*12.5-15-24PR | 28*12.5-15-24PR | 28*12.5-15-24PR | ||
25 | Rear | 7.00-12-14PR | 7.00-12-14PR | 7.00-12-14PR | |||
Driven | 26 | Motor | Driven Motor | kw | 9.1*2 | 9.1*2 | 9.1*2 |
27 | Lift Motor | kw | 25.4 | 25.4 | 25.4 | ||
28 | Battery | Standard | V/Ah | 80/600 | 80/700 | 80/800 | |
29 | Controller | Manufacturer | CURTIS | CURTIS | CURTIS | ||
30 | Operating Pressure for Attachment | Mpa | 17.5 | 17.5 | 17.5 |
