FC15~FC35

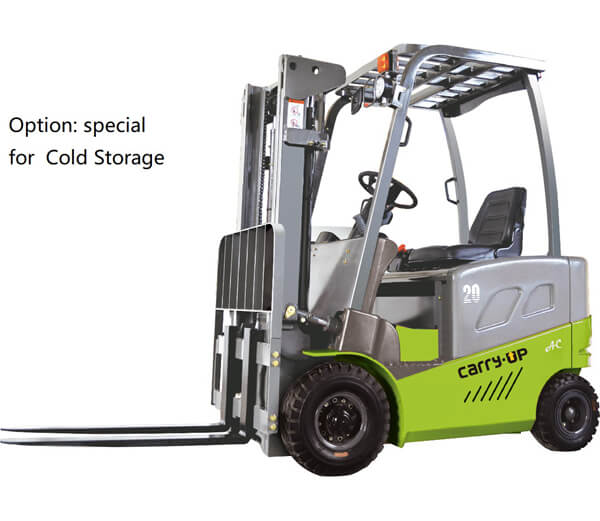

CARRY•UP FC15~FC35 Four Wheels Electric Forklift Truck | |||||||||
General | 1 | Model | FC15 | FC20 | FC25 | FC30 | FC35 | ||
2 | Power Type | Electric | |||||||
3 | Operation Type | Seated | |||||||
4 | Rated capacity | kg | 1500 | 2000 | 2500 | 3000 | 3500 | ||
5 | Load Centre | c(mm) | 500 | ||||||
6 | Assembly Level (GB5184) | 2A | 2A | 2A | 3A | 3A | |||
Characteristic &Dimension |
7 | Lift height | h1(mm) | 3000 | 3000 | 3000 | 3000 | 3000 | |
8 | Free Lift Height | h2(mm) | 135 | 140 | 140 | 140 | / | ||
9 | Tyre | Front /rear Type |
Pneumatic/ Pneumatic |
Pneumatic/ Pneumatic |
Pneumatic/ Pneumatic |
Pneumatic/ Pneumatic |
Solid/ Solid |
||
10 | Front Tyre Size | 6.00-9-10PR | 21×8-9-16PR | 21×8-9-16PR | 23×9-10-16PR | 28×9-15 | |||
11 | Front Rim Size | 4.00E-9 | 6.00E-9 | 6.00E-9 | 6.50F-10 | 7.00T-15 | |||
12 | Rear Tyre Size | 16×6-8-10PR | 18×7-8-14PR | 18×7-8-14PR | 18×7-8-14PR | 18×7-8 | |||
13 | Rear Rim Size | 4.33R-8 | 4.33R-8 | 4.33R-8 | 4.33R-8 | 4.33R-8 | |||
14 | Front/rear Number (X=drive) | 2X / 2 | 2X / 2 | 2X / 2 | 2X / 2 | 2X / 2 | |||
15 | Overall Dimension |
Tilting Angle Of Mast (forward-backward) |
α/β(°) | 6/10 | 6/10 | 6/10 | 6/10 | 6/12 | |
16 | Mast Lowered Height | h3(mm) | 1995 | 1995 | 1995 | 2100 | 2080 | ||
17 | Mast Extended Height | h4(mm) | 3580 | 3620 | 3620 | 3720 | 3706 | ||
18 | Height-Mast Extended w/backrest | h5(mm) | 4030 | 4030 | 4030 | 4130 | 4220 | ||
19 | Height of Overhead Guard | h6(mm) | 2100 | 2100 | 2100 | 2130 | 2200 | ||
20 | Height,Seat to Overhead Guard | h7(mm) | 930 | 930 | 930 | 930 | 1020 | ||
21 | Min. Ground Clearance,Mast | h8(mm) | 80 | 80 | 80 | 80 | 150 | ||
22 | Overall Length | l1(mm) | 3130 | 3390 | 3420 | 3615 | 3627 | ||
23 | Wheelbase | y(mm) | 1325 | 1500 | 1500 | 1700 | 1600 | ||
24 | Front Overhang | x(mm) | 370 | 420 | 420 | 418 | 478 | ||
25 | Overall Width | b1/b2(mm) | 1080/1070 | 1160/1140 | 1160/1140 | 1180/1140 | 1225/1200 | ||
26 | Tread Front/rear | b3/b4(mm) | 910/930 | 950/980 | 950/980 | 970/980 | 1000/992 | ||
27 | Fork Dimensions | l/e/s(mm) | 1070×100×35 | 1070×120×40 | 1070×120×40 | 1070×130×40 | 1070/122/50 | ||
28 | Distance Between Fork-arms | b5(mm) | 220~930 | 260~1000 | 260~1000 | 280~1060 | 265~1060 | ||
29 | Aisle Width for pallet 1000*1200 crossways | Ast(mm) | 3460 | 3720 | 3730 | 3920 | 3993 | ||
30 | Turning Radius | Wa(mm) | 1890 | 2100 | 2110 | 2300 | 2315 | ||
Performance | 31 | Speed | Travel (laden/unladen) | km/h | 10/12 | 10/12 | 10/12 | 10/12 | 11.6/11.9 |
32 | Lifting (laden/unladen) | mm/s | 300/ | 230/ | 260/ | 220/ | 131/283 | ||
33 | Max.Gradeability(Laden/unladen) | % | 10/12 | 10/12 | 10/12 | 10/12 | 10/13 | ||
34 | Steering Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |||
35 | Service Brake | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |||
36 | Service Brake Type | Pedal | Pedal | Pedal | Pedal | Foot brake | |||
37 | Parking Brake | Mechanical | Mechanical | Mechanical | Mechanical | Hand brake | |||
38 | Service Weight(include battery) | kg | 2980 | 3850 | 4100 | 4450 | 5130 | ||
Power& Transmission |
39 | Motor | Drive Motor (S2 60) | kw | AC6.8 | AC6.8 | AC6.8 | AC9.1 | AC16.6 |
40 | Lift Motor (S3 15%) | kw | DC7.5 | DC7.5 | DC10 | DC10 | DC10 | ||
41 | Battery | Charger,voltage/current | V/A | 48/50 | 48/70 | 48/80 | 48/80 | 80/60 | |
42 | Voltage/Capacity | V/Ah | 48/400 | 48/490 | 48/560 | 48/630 | 80/500 | ||
43 | Weight | kg | 645 | 750 | 870 | 960 | 1230 | ||
44 | Controller Brand | curtis | curtis | curtis | curtis | / | |||
45 | Controller Model | 1234E | 1234E | 1236E | 1236E | / | |||
46 | Noise Level to operator's ear | db(A) | 75 | 75 | 75 | 75 | / | ||
47 | Max.Operating Pressure for attachments | bar | 160 | 160 | 160 | 160 | / | ||
48 | Displacement of Gear Pump | 18 | 16 | 23 | 23 | / | |||
49 | Type of Steering Gear | Full hydraulic steering gear with prior valva type |
CARRY•UP Mast Specification | |||||||||||
FC15 | |||||||||||
Duplex Mast | |||||||||||
Model | Unit | FC15 | |||||||||
Max.lift height | mm | 2500 | 2700 | 3000 | 3300 | 3500 | 3700 | 4000 | 4250 | 4500 | |
Height---Mast Lowered | h1 | mm | 1745 | 1845 | 1995 | 2145 | 2245 | 2345 | 2545 | 2670 | 2795 |
Height-Mast Extended with Backrest | h4 | mm | 3530 | 3730 | 4030 | 4330 | 4530 | 4730 | 5030 | 5280 | 5530 |
Free lift height | h2 | mm | 135 | 135 | 135 | 135 | 135 | 135 | 135 | 135 | 135 |
Duplex Full free Mast | |||||||||||
Model | Unit | FC15 | |||||||||
Max.lift height | mm | 2500 | 2700 | 3000 | 3300 | 3500 | 3700 | 4000 | 4250 | 4500 | |
Height---Mast Lowered | h1 | mm | 1745 | 1845 | 1995 | 2145 | 2245 | 2345 | 2545 | 2670 | 2795 |
Height-Mast Extended with Backrest | h4 | mm | 3540 | 3740 | 4040 | 4340 | 4540 | 4740 | 5040 | 5290 | 5540 |
Free lift height | h2 | mm | 702 | 802 | 952 | 1102 | 1202 | 1302 | 1502 | 1627 | 1752 |
Triplex full free Mast | |||||||||||
Model | Unit | FC15 | |||||||||
Max.lift height | mm | 3600 | 4000 | 4350 | 4500 | 4800 | 5000 | 5500 | 6000 | ||
Height Mast Lowered | h1 | mm | 1795 | 1930 | 2045 | 2095 | 2195 | 2265 | 2485 | 2655 | |
Height-Mast Extended with Backrest | h4 | mm | 4940 | 5340 | 5390 | 5540 | 5840 | 6040 | 6540 | 7040 | |
Free lift height | h2 | mm | 452 | 852 | 902 | 1052 | 1352 | 1552 | 2052 | 2552 | |
FC20 & FC25 | |||||||||||
Duplex Mast | |||||||||||
Model | Unit | FC20 | |||||||||
Max.lift height | mm | 2500 | 2700 | 3000 | 3300 | 3500 | 3700 | 4000 | 4250 | 4500 | |
Height---Mast Lowered | h1 | mm | 1745 | 1845 | 1995 | 2145 | 2245 | 2345 | 2545 | 2670 | 2795 |
Height-Mast Extended with Backrest | h4 | mm | 3530 | 3730 | 4030 | 4330 | 4530 | 4730 | 5030 | 5280 | 5530 |
Free lift height | h2 | mm | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
Duplex Full free Mast | FC20 & FC25 | ||||||||||
Max.lift height | mm | 2500 | 2700 | 3000 | 3300 | 3500 | 3700 | 4000 | 4250 | 4500 | |
Height---Mast Lowered | h1 | mm | 1745 | 1845 | 1995 | 2145 | 2245 | 2345 | 2545 | 2670 | 2795 |
Height-Mast Extended w/ Backrest | h4 | mm | 3580 | 3780 | 4080 | 4380 | 4580 | 4780 | 5080 | 5330 | 5500 |
Free lift height | h2 | mm | 662 | 762 | 912 | 1062 | 1162 | 1262 | 1462 | 1587 | 1712 |
Triplex full free Mast | FC20 & FC25 | ||||||||||
Max.lift height | mm | 3600 | 4000 | 4200 | 4350 | 4500 | 4800 | 5000 | 5500 | 6000 | |
Height---Mast Lowered | h1 | mm | 1795 | 1930 | 1995 | 2045 | 2095 | 2195 | 2260 | 2425 | 2645 |
Height-Mast Extended with Backrest | h4 | mm | 4635 | 5035 | 5235 | 5385 | 5535 | 5835 | 6035 | 6535 | 7035 |
Free lift height | h2 | mm | 152 | 552 | 752 | 902 | 1052 | 1352 | 1552 | 2052 | 2552 |
FC30 | |||||||||||
Duplex Mast | |||||||||||
Max.lift height | mm | 2500 | 2700 | 3000 | 3300 | 3500 | 3700 | 4000 | 4250 | 4500 | |
Height---Mast Lowered | h1 | mm | 1745 | 1950 | 2100 | 2250 | 2350 | 2450 | 1650 | 2775 | 2900 |
Height-Mast Extended with Backrest | h4 | mm | 3630 | 3830 | 4130 | 4430 | 4630 | 4830 | 5130 | 5380 | 5630 |
Free lift height | h2 | mm | 145 | 145 | 145 | 145 | 145 | 145 | 145 | 145 | 145 |
Duplex Full free Mast | |||||||||||
Model | Unit | FC30 | |||||||||
Max.lift height | mm | 2500 | 2700 | 3000 | 3300 | 3500 | 3700 | 4000 | 4250 | 4500 | |
Height---Mast Lowered | h1 | mm | 1850 | 1950 | 2100 | 2250 | 2350 | 2450 | 2650 | 2775 | 2900 |
Height-Mast Extended with Backrest | h4 | mm | 3635 | 3835 | 4135 | 4435 | 4635 | 4835 | 5135 | 5385 | 5635 |
Free lift height | h2 | mm | 714 | 814 | 964 | 1114 | 1214 | 1314 | 1514 | 1639 | 1764 |
Triplex full free Mast | |||||||||||
Model | Unit | FC30-36 | FC30-40 | FC30-42 | FC30-43.5 | FC30-45 | FC30-48 | FC30-50 | FC30-55 | FC30-60 | |
Max.lift height | mm | 3600 | 4000 | 4200 | 4350 | 4500 | 4800 | 5000 | 5500 | 6000 | |
Height---Mast Lowered | h1 | mm | 1850 | 1985 | 2050 | 2100 | 2150 | 2250 | 2315 | 2480 | 2700 |
Height-Mast Extended with Backrest | h4 | mm | 4730 | 5130 | 5330 | 5480 | 5630 | 5930 | 6130 | 6630 | 7130 |
Free lift height | h2 | mm | 713 | 848 | 913 | 963 | 1013 | 1113 | 1178 | 1343 | 1563 |
Remark: No change for those height if add the side shift ! |
