SF03

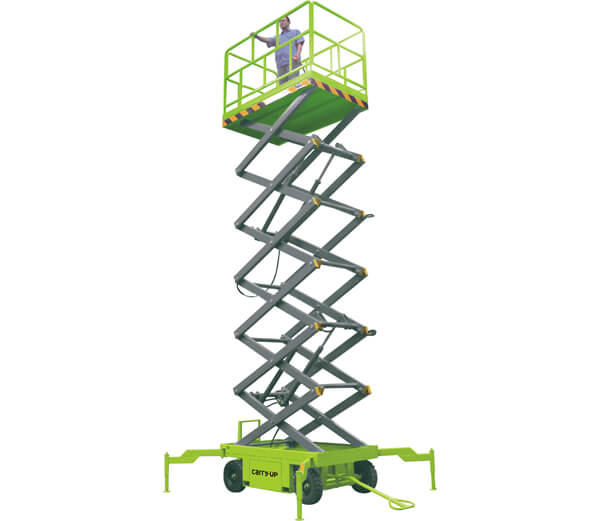

| CARRY•UP Mobile scissors lift platform (Small) | ||||||
| Specification | 1 | Model | SF0.3-1.8 | SF0.3-3 | SF0.3-3.9 | |
| 2 | Platform Height（Max) | mm | 1800 | 3000 | 3900 | |
| 3 | Platform Height (Min) | mm | 550 | 650 | 750 | |
| 4 | Platform Size | mm | 1150×600 | 1150×600 | 1150×600 | |
| 5 | Overall Length | mm | 1280 | 1280 | 1280 | |
| 6 | Overall Width | mm | 760 | 760 | 760 | |
| 7 | Overall Height (Folding) | mm | 1640 | 1720 | 1800 | |
| 8 | Max.Load | kg | 300 | 300 | 300 | |
| 9 | Elevating Rise Time | S | 10 | 33 | 53 | |
| 10 | Elevating Fall Time | S | 7 | 30 | 50 | |
| 11 | Lifting Motor | V/kw | 12/0.8 | 12/0.8 | 12/0.8 | |
| 12 | Integrated Charger | V/A | 12/15A | 12/15A | 12/15A | |
| 13 | Weight | kg | 360 | 390 | 450 | |
Carryup 3-Way Electric Reach Truck
TW10&TW15
1. Soft backrest;
2. Loaded Capacity: 1Tons，1.5Tons
3. The min. width of aisle is 1510mm;
4. Colored monitor for triplex mast;
5. More efficient use of available space
6. More Product Storage - Up to 60% increase;
7. Optional lift height: 2500-7500mm ,and no loading weight missing under 5500mm
8. A narrow classis design, small battery compartment and tiller arm steering with 180° range give this compact stacker excellent maneuverability even in limited space.
:
:
:
Carryup Electric Rider Pallet Truck
CBD20R-II/CBD25R-II/CBD30R-II(EPS)
Capacity: 2tons，2.5tons,3tons
:
:
:
Three Wheels Electric Forklift
CDP12V/CDP15V SMART
Capacity: 1.2tons，1.5tons
Max.lift height :3000-6000mm
:
:
:
